Enhanced Spectral Imaging with Tunable Laser Systems

four different spectral imaging applications, showing illuminated biological samples

Enhanced Spectral Imaging with Tunable Laser Systems (TLS): In the realm of spectral imaging, tunable lasers, with their ability to meticulously adjust their output wavelengths, serve as the cornerstone for various spectral imaging applications. From the delicate tissues of a biological specimen to the robust components of industrial machinery, tunable lasers play a key role in identifying the composition of materials and imaging intricate features. This versatility not only enhances the precision of imaging but also expands the horizons of scientific discovery and technological innovation.

Spectrolight’s Tunable Laser System (TLS – based on the SL-Pico supercontinuum laser) revolutionizes spectral imaging by providing a single tunable light source solution covering a wide spectral range from 410 to 1700 nm. This significantly reduces operating costs and simplifies the imaging process by eliminating the need for hyperspectral cameras and individual optical filters.

TLS-Red-Tunable-Bandwidth & TLS-Blue-Fixed-Bandwidth Benefits:

Cost-Effective: Minimizes the need for hyperspectral imaging components
Efficient: Reduces setup times, increasing operational efficiency
Versatile: One system covers a wide range of applications

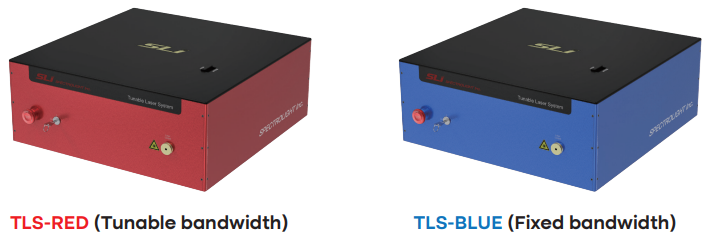

Two modern, sleek, tunable lasers, simple, short cube-like boxes, one red and black, one blue and black

Wavelength Tunability

The core attribute of tunable lasers is their wavelength tunability, which is the laser’s capacity to selectively alter its output wavelength within a specific range. This feature is indispensable for spectral imaging, as it allows for selective excitation of different fluorophores or chromophores within a sample. By tuning the laser to the precise absorption peaks of these molecules, one can achieve high-precision imaging results, which is crucial for applications that require discerning fine details or changes in the composition of the subject matter.

Bandwidth Tunability

The TLS-Red series of tunable laser systems provides simultaneous wavelength and bandwidth tunability. Tunable bandwidth refers to the adjustable FWHM wavelength output (in nanometers) over which a laser can be tuned. A broader tunable bandwidth allows for greater flexibility in imaging a diverse array of substances, as it can accommodate a wider variety of absorption and emission spectra. Lasers with a narrow tunable bandwidth are typically used for applications requiring high specificity, while those with a broad bandwidth are sought after for their versatility in imaging a multitude of materials. The choice of fixed versus tunable bandwidth is dictated by the application’s requirements, balancing the need for specificity against the desire for adaptability, for example.

Highlighted Applications

In spectral imaging, tunable lasers are used to illuminate a sample across a range of wavelengths. The reflected or transmitted light is then analyzed to determine the sample’s composition or to image its features. Spectral imaging applications are vast and varied, encompassing numerous fields where the unique capabilities of tunable lasers are leveraged:

spectral imaging application, medical & life science, microscopic image of excited fluorophores in a biological sample

Medical and Life Sciences: Fluorescence Imaging

The tunability of TLS is revolutionizing fluorescence imaging, a cornerstone of medical and life sciences research. By enabling a single light source to excite various fluorophores, TLS facilitates complex multi-fluorophore studies with ease and efficiency. This capability is not just enhancing cell and molecular biology research; it’s propelling it forward, allowing for the observation of intricate biological processes in real-time, leading to breakthroughs in diagnostics and therapeutic interventions.

Forgery Detection

In the realm of authentication and forensics, TLS emerges as a critical ally. By meticulously analyzing the spectral signatures of various materials, TLS distinguishes between the authentic and the counterfeit with remarkable accuracy. Its broad spectral range ensures that even the most subtle discrepancies are detected, safeguarding the integrity of products and artifacts.

spectral imaging application, quantum & nano technology, tunable laser emitting in the infrared range, passing through a vial containing nanoparticles, which illuminate, showing the otherwise invisible beam

Quantum and Nano Technology: UCNP Imaging

TLS is at the forefront of quantum and nanotechnology research, particularly in the study of quantum dots and upconversion nanoparticles (UCNPs). Providing precise and tunable excitation, TLS is instrumental in uncovering the extraordinary properties of these minuscule materials. These applications are not just pivotal for the advancement of imaging and security technologies; they’re also unlocking new potentials in solar energy conversion.

non-destructive testing, illuminated and backlit samples of materials with markings, grayscale

Industrial Imaging and Non-Destructive Testing

TLS offers a non-invasive yet powerful solution for maintaining quality and safety in industrial settings. Whether it’s detecting manufacturing defects or identifying contaminants in food production, TLS operates without needing multiple imaging systems, streamlining processes and ensuring the integrity of products from inception to delivery.

inspection, Micro view of laser various laser markings, greyscale

Inspection in the Semiconductor Field

The semiconductor industry relies on TLS’s precision and expansive spectral range for meticulous inspection processes. TLS is indispensable for the production of high-functionality semiconductor devices, as it can identify defects at the microscopic level. Its application ensures that the smallest imperfections, which could compromise device performance, are detected and addressed, maintaining the highest quality standards in this ever-evolving field.

Tunable Laser Systems for Long-Term Application Success

Tunable laser systems (TLS) are a breakthrough in spectral imaging, offering unparalleled flexibility, precision, and cost-effectiveness for a wide range of applications across numerous fields. As technology progresses, the role of TLS in these fields is set to become even more integral, driving innovation and ensuring quality in an array of scientific and industrial endeavors. As a comprehensive and tunable light source, TLS significantly simplifies the imaging process, reducing reliance on multiple expensive instrument adjustments. Its transformative impact ranges from strengthening research capabilities in life sciences to improving production quality and safety in industrial settings. TLS, therefore, represents a pivotal advance in the spectral imaging domain, setting new standards for versatility and efficiency.
